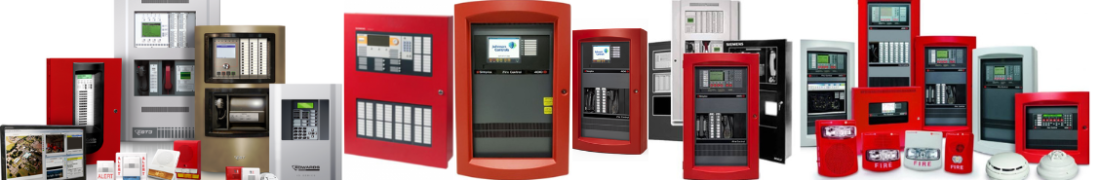

Fire Alarm Control Panel
A Fire Alarm Control Panel (FACP) is the central hub of a building’s fire alarm system. It monitors and controls various fire detection and notification devices, ensuring prompt response in case of a fire. The panel features a user interface with buttons, switches, and a display screen, allowing authorized personnel to reset the system, silence alarms, and access event logs. It includes a primary power source connected to the building’s electrical system and a backup battery for continuous operation during power outages. The FACP manages multiple circuits or zones, enabling precise identification of alarm locations. It interfaces with smoke, heat, and multi-sensor detectors, as well as audible and visual notification devices. Advanced panels may communicate with monitoring centers and fire departments for coordinated emergency response. Regular maintenance and testing are essential to ensure the system’s reliability and compliance with safety regulations, protecting occupants and property from fire hazards.
Smoke/Heat/Multi/Flame/IR Ember Detector
1. Smoke Detectors: Smoke detectors are designed to detect the presence of smoke particles in the air, which can indicate a fire. There are two main types:
Ionization Smoke Detectors: These are more responsive to flaming fires and detect both visible and invisible combustion products.
Photoelectric Smoke Detectors: These are better at detecting smoldering fires by sensing the light reflected by smoke particles.
2. Heat Detectors: Heat detectors sense the rise in temperature caused by a fire. They are typically used in environments where smoke detectors might give false alarms, such as kitchens or industrial areas. There are two main types:
Fixed Temperature Heat Detectors: These trigger an alarm when the temperature reaches a preset level.
Rate-of-Rise Heat Detectors: These detect a rapid increase in temperature.
3. Multi-Sensor Detectors: Multi-sensor detectors combine smoke and heat detection technologies to improve accuracy and reduce false alarms. They can detect both smoke and heat, providing a more reliable indication of a fire.
4. Flame Detectors: Flame detectors are designed to detect the infrared (IR) or ultraviolet (UV) radiation emitted by flames. They are highly sensitive and can detect fires quickly, making them suitable for high-risk environments like chemical plants or fuel storage areas.
5. IR Ember Detectors: IR ember detectors use infrared technology to detect hot embers or particles that could potentially start a fire. They are often used in industrial settings, such as coal handling facilities or waste recycling plants, to prevent fires from spreading
Manual Call Point
A Manual Call Point (MCP), also known as a fire alarm pull station, allows building occupants to manually trigger the fire alarm system in case of an emergency. Located in accessible areas, MCPs are activated by breaking a glass element, pressing a button, or pulling a lever, depending on the type. Once activated, an alarm signal is sent to the fire alarm control panel, alerting occupants and emergency responders. MCPs also often have a visual indicator, such as an LED light, showing activation. They must be reset by authorized personnel after use and comply with local fire safety regulations.
Notification Appliances
Notification Appliances are essential components of fire alarm systems, designed to alert occupants of a building during an emergency. These devices include audible alarms (such as horns, bells, or speakers) and visual alarms (like strobe lights) to ensure the alert reaches everyone, including those with hearing impairments. They are strategically placed throughout the building for maximum coverage. When activated by the fire alarm control panel, notification appliances emit loud sounds and bright flashes to prompt immediate evacuation. They must comply with local fire safety standards to ensure effectiveness and reliability during emergencies. Regular testing and maintenance are crucial for their proper functioning.
Reflected Beam Smoke Detector
A Reflected Beam Smoke Detector is designed for large, open areas with high ceilings where traditional smoke detectors are impractical. It uses a single-ended optical beam system, with a transmitter and receiver positioned at opposite ends. The transmitter emits a beam of light that reflects off a reflector and returns to the receiver. When smoke is present, it disrupts the light beam, triggering the alarm. These detectors are easy to install and align, and they offer adjustable sensitivity levels to accommodate different environments. They are ideal for spaces like warehouses, atriums, and sports arenas.
Modules-Zone/Monitor/Control/Relay/Isolator
Here’s a description of various fire alarm system modules:
Zone Monitor Modules:
These modules supervise specific zones within a building, monitoring for faults such as open or short circuits. They ensure that any issues within a zone are promptly detected and reported to the fire alarm control panel.
Monitor Modules:
Monitor modules are used to supervise external devices and systems, such as sprinkler systems or other fire safety equipment. They send status updates and fault alerts to the control panel, ensuring comprehensive monitoring of all safety systems.
Control Modules:
Control modules manage and activate devices within the fire alarm system, such as sounders, strobes, and HVAC controls. They receive commands from the control panel and execute specific actions to enhance fire response and safety measures.
Relay Modules:
Relay modules provide interface capabilities between the fire alarm system and external devices. They use relays to transmit control signals, allowing the system to activate other equipment, like door releases, fans, or emergency lighting.
Isolator Modules:
Isolator modules ensure electrical isolation between different components of the fire alarm system. In the event of a fault, they prevent the issue from affecting other parts of the system, maintaining overall functionality and reliability.
These modules enhance the flexibility and functionality of fire alarm systems, ensuring comprehensive monitoring, control, and safety across different areas and devices within a building. If you need more specific details or have any questions, feel free to ask!
Linear Heat Sensor/Detector (LHS)
A Linear Heat Sensor (LHS) is a type of fire detection device designed to detect heat along its entire length. It consists of a cable with heat-sensitive insulation that triggers an alarm when the temperature exceeds a preset threshold. LHS detectors are flexible and can be installed in various environments, including open areas and confined spaces. They are commonly used in industrial settings, tunnels, and conveyor systems where traditional point detectors might not be suitable. LHS detectors offer early detection of fires and overheating, enhancing safety and minimizing potential damage.

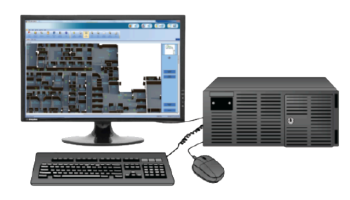

Graphic PC Software
Fire Graphic PC Software is a powerful tool used to monitor and manage fire alarm systems through graphical interfaces. It provides real-time visualization of the fire alarm system, including maps, device statuses, and event logs. Users can navigate through different areas of a building, view detailed information about alarms and faults, and control various fire safety devices remotely. The software often includes features like customizable event prioritization, historical event logs, and user profiles for multiple operators. It enhances situational awareness and response efficiency during fire emergencies.
